小兔鲜儿 - 分类模块
用户点击左菜单的一级分类，切换右侧对应的二级分类和商品。
准备工作

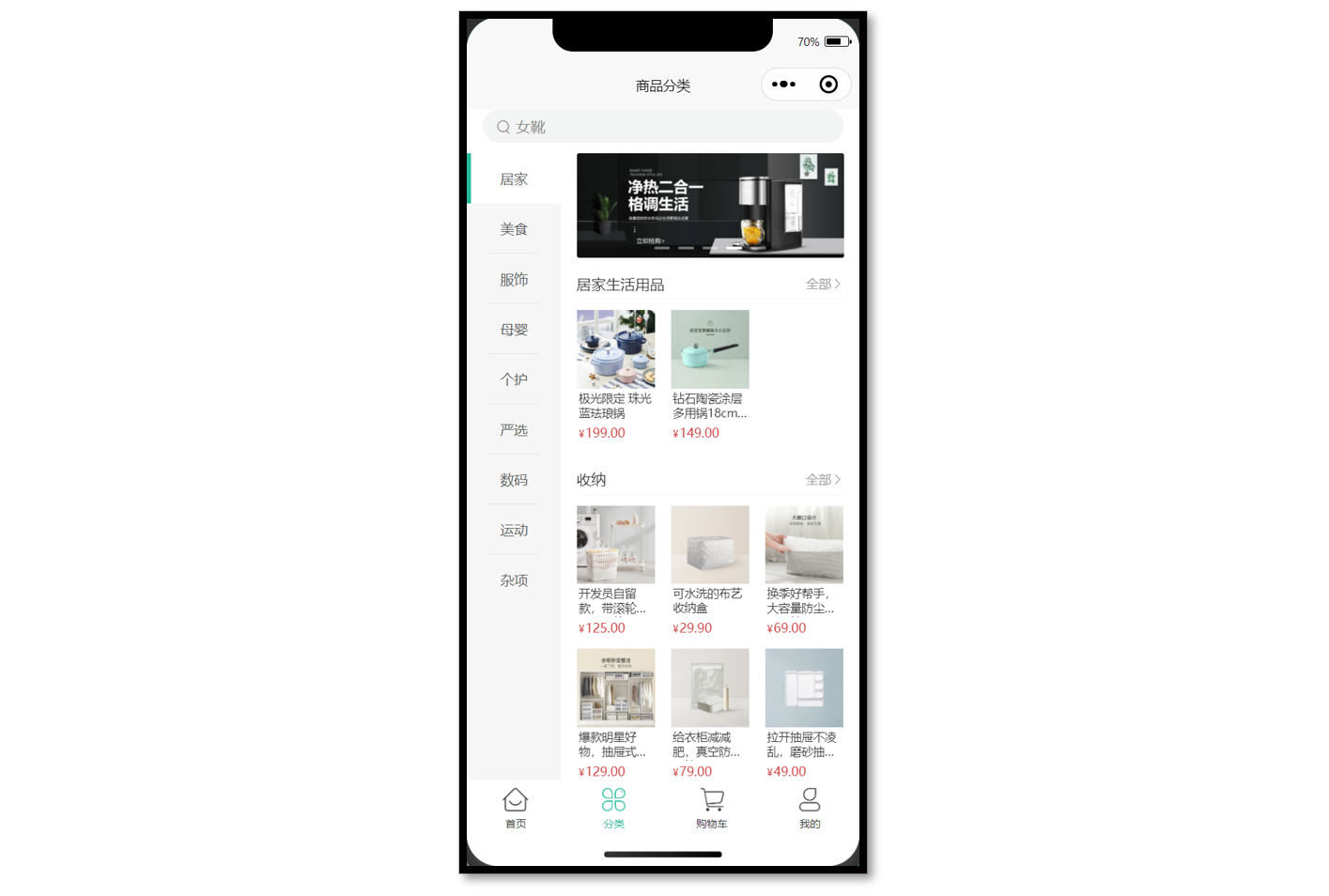

参考效果
商品分类页中的广告位，可复用之前定义的轮播图组件 XtxSwiper。
静态结构
商品分类页静态结构： src/pages/category/category.vue
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
| <script setup lang="ts">
//
</script>
<template>
<view class="viewport">
<!-- 搜索框 -->
<view class="search">
<view class="input">
<text class="icon-search">女靴</text>
</view>
</view>
<!-- 分类 -->
<view class="categories">
<!-- 左侧：一级分类 -->
<scroll-view class="primary" scroll-y>
<view
v-for="(item, index) in 10"
:key="item"
class="item"
:class="{ active: index === 0 }"
>
<text class="name"> 居家 </text>
</view>
</scroll-view>
<!-- 右侧：二级分类 -->
<scroll-view class="secondary" scroll-y>
<!-- 焦点图 -->
<XtxSwiper class="banner" :list="[]" />
<!-- 内容区域 -->
<view class="panel" v-for="item in 3" :key="item">
<view class="title">
<text class="name">宠物用品</text>
<navigator class="more" hover-class="none">全部</navigator>
</view>
<view class="section">
<navigator
v-for="goods in 4"
:key="goods"
class="goods"
hover-class="none"
:url="`/pages/goods/goods?id=`"
>
<image
class="image"
src="https://yanxuan-item.nosdn.127.net/674ec7a88de58a026304983dd049ea69.jpg"
></image>
<view class="name ellipsis">木天蓼逗猫棍</view>
<view class="price">
<text class="symbol">¥</text>
<text class="number">16.00</text>
</view>
</navigator>
</view>
</view>
</scroll-view>
</view>
</view>
</template>
<style lang="scss">
page {
height: 100%;
overflow: hidden;
}
.viewport {
height: 100%;
display: flex;
flex-direction: column;
}
.search {
padding: 0 30rpx 20rpx;
background-color: #fff;
.input {
display: flex;
align-items: center;
justify-content: space-between;
height: 64rpx;
padding-left: 26rpx;
color: #8b8b8b;
font-size: 28rpx;
border-radius: 32rpx;
background-color: #f3f4f4;
}
}
.icon-search {
&::before {
margin-right: 10rpx;
}
}
/* 分类 */
.categories {
flex: 1;
min-height: 400rpx;
display: flex;
}
/* 一级分类 */
.primary {
overflow: hidden;
width: 180rpx;
flex: none;
background-color: #f6f6f6;
.item {
display: flex;
justify-content: center;
align-items: center;
height: 96rpx;
font-size: 26rpx;
color: #595c63;
position: relative;
&::after {
content: "";
position: absolute;
left: 42rpx;
bottom: 0;
width: 96rpx;
border-top: 1rpx solid #e3e4e7;
}
}
.active {
background-color: #fff;
&::before {
content: "";
position: absolute;
left: 0;
top: 0;
width: 8rpx;
height: 100%;
background-color: #27ba9b;
}
}
}
.primary .item:last-child::after,
.primary .active::after {
display: none;
}
/* 二级分类 */
.secondary {
background-color: #fff;
.carousel {
height: 200rpx;
margin: 0 30rpx 20rpx;
border-radius: 4rpx;
overflow: hidden;
}
.panel {
margin: 0 30rpx 0rpx;
}
.title {
height: 60rpx;
line-height: 60rpx;
color: #333;
font-size: 28rpx;
border-bottom: 1rpx solid #f7f7f8;
.more {
float: right;
padding-left: 20rpx;
font-size: 24rpx;
color: #999;
}
}
.more {
&::after {
font-family: "erabbit" !important;
content: "\e6c2";
}
}
.section {
width: 100%;
display: flex;
flex-wrap: wrap;
padding: 20rpx 0;
.goods {
width: 150rpx;
margin: 0rpx 30rpx 20rpx 0;
&:nth-child(3n) {
margin-right: 0;
}
image {
width: 150rpx;
height: 150rpx;
}
.name {
padding: 5rpx;
font-size: 22rpx;
color: #333;
}
.price {
padding: 5rpx;
font-size: 18rpx;
color: #cf4444;
}
.number {
font-size: 24rpx;
margin-left: 2rpx;
}
}
}
}
</style>
|
渲染轮播图
接口调用
渲染轮播图数据业务功能对于前端来说比较简单，只需调用后端提供的接口将获得的数据展现。
注意：传递参数 2 标识获取商品分类页广告。
接口地址：/home/banner
请求方式：GET
请求参数：
Query:
| 字段名称 |
是否必须 |
默认值 |
备注 |
| distributionSite |
否 |
1 |
活动 banner 位置，1 代表首页，2 代表商品分类页，默认为 1 |
一级分类
获取数据
该接口同时包含一级分类和二级分类数据，二级分类数据需要先对数据进行处理，再进行渲染。
接口调用
接口地址：/category/top
请求方式：GET
请求参数：无
请求封装
1
2
3
4
5
6
7
8
9
10
|
export const getCategoryTopAPI = () => {
return http<CategoryTopItem[]>({
method: "GET",
url: "/category/top",
});
};
|
类型声明
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
|
import type { GoodsItem } from "./global";
export type CategoryTopItem = {
children: CategoryChildItem[];
id: string;
imageBanners: string[];
name: string;
picture: string;
};
export type CategoryChildItem = {
goods: GoodsItem[];
id: string;
name: string;
picture: string;
};
|
接下来，先把一级分类数据结合模板语法渲染到页面中。
Tab 交互
当用户点击一级分类时，需要高亮显示，即给它添加 .active 类名即可。
{8-12,15,19,31-34,36}1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
| <script setup lang="ts">
import { getCategoryTopAPI } from "@/services/category";
import type { CategoryTopItem } from "@/types/category";
import { onLoad } from "@dcloudio/uni-app";
import { ref } from "vue";
// 获取分类列表数据
const categoryList = ref<CategoryTopItem[]>([]);
const getCategoryTopData = async () => {
const res = await getCategoryTopAPI();
categoryList.value = res.result;
};
// 高亮下标
const activeIndex = ref(0);
// 页面加载
onLoad(() => {
getCategoryTopData();
});
</script>
<template>
<view class="viewport">
<!-- 分类 -->
<view class="categories">
<!-- 左侧：一级分类 -->
<scroll-view class="primary" scroll-y>
<view
class="item"
v-for="(item, index) in categoryList"
:key="item.id"
:class="{ active: index === activeIndex }"
@tap="activeIndex = index"
>
{{ item.name }}
</view>
</scroll-view>
</view>
</view>
</template>
|
二级分类
商品二级分类是从属于某个一级分类的，通过 computed 配合高亮下标提取当前二级分类数据。
参考代码
{7-9}1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
| <script setup lang="ts">
import { computed } from 'vue'
// ...省略
// 提取当前二级分类数据
const subCategoryList = computed(() => {
return categoryList.value[activeIndex.value]?.children || []
})
</script>
<template>
<view class="viewport">
<!-- ...省略 -->
<!-- 右侧：二级分类 -->
<scroll-view class="secondary" scroll-y>
<!-- 焦点图 -->
<XtxSwiper class="banner" :list="bannerList" />
<!-- 内容区域 -->
<view class="panel" v-for="item in subCategoryList" :key="item.id">
<view class="title">
<text class="name">{{ item.name }}</text>
<navigator class="more" hover-class="none">全部</navigator>
</view>
<view class="section">
<navigator
v-for="goods in item.goods"
:key="goods.id"
class="goods"
hover-class="none"
:url="`/pages/goods/goods?id=${goods.id}`"
>
<image class="image" :src="goods.picture"></image>
<view class="name ellipsis">{{ goods.name }}</view>
<view class="price">
<text class="symbol">¥</text>
<text class="number">{{ goods.price }}</text>
</view>
</navigator>
</view>
</view>
</scroll-view>
</view>
</view>
</template>
|
提取当前二级分类数据后，剩下的就是列表渲染。
骨架屏

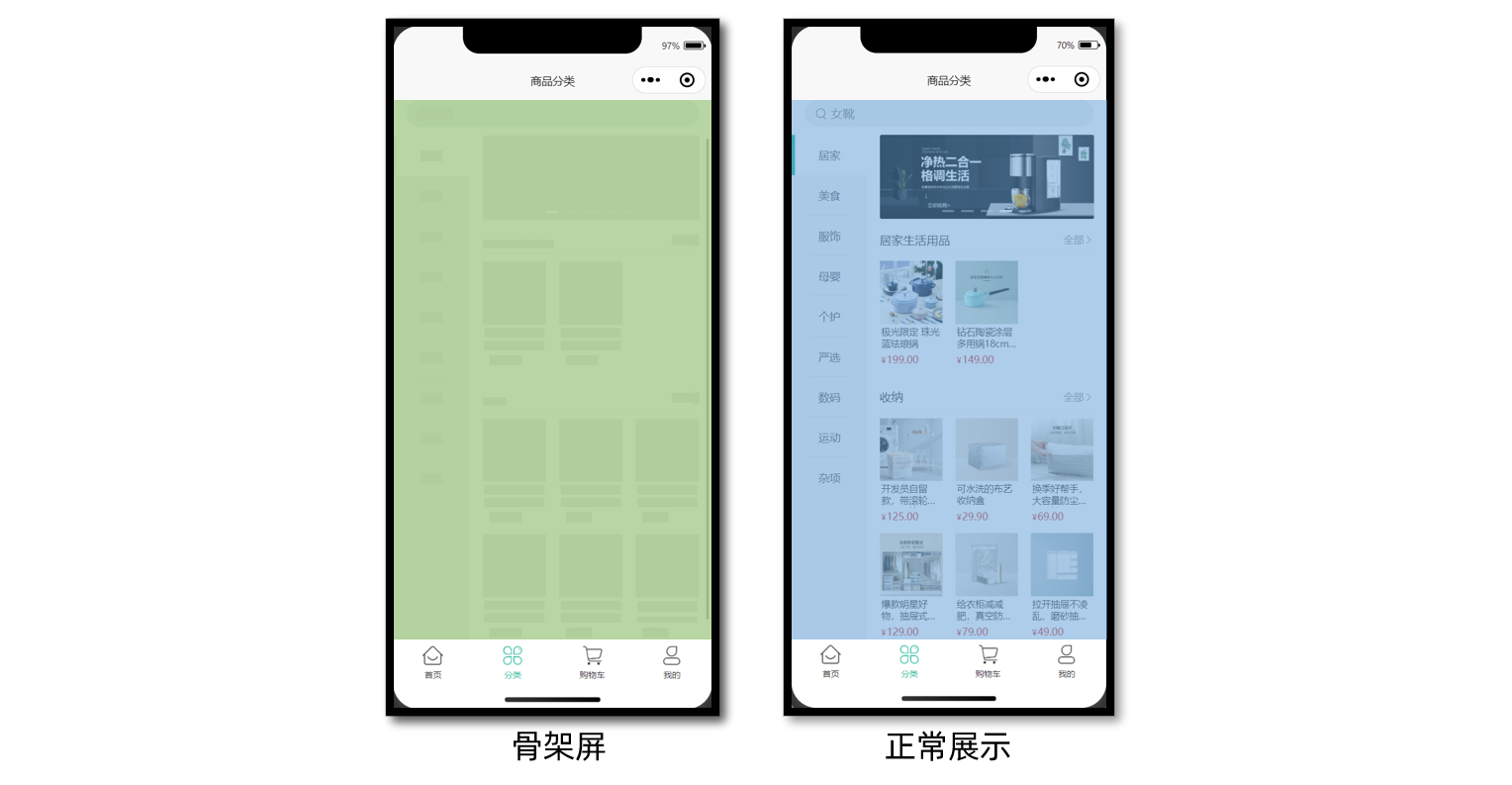

参考效果
实现步骤参考首页的骨架屏。
代码参考(总)
商品分类页
{26,30,40,94}1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
| <script setup lang="ts">
import { getCategoryTopAPI } from "@/services/category";
import { getHomeBannerAPI } from "@/services/home";
import type { CategoryTopItem } from "@/types/category";
import type { BannerItem } from "@/types/home";
import { onLoad } from "@dcloudio/uni-app";
import { computed, ref } from "vue";
import PageSkeleton from "./components/PageSkeleton.vue";
// 获取轮播图数据
const bannerList = ref<BannerItem[]>([]);
const getBannerData = async () => {
const res = await getHomeBannerAPI(2);
bannerList.value = res.result;
};
// 获取分类列表数据
const categoryList = ref<CategoryTopItem[]>([]);
const activeIndex = ref(0);
const getCategoryTopData = async () => {
const res = await getCategoryTopAPI();
categoryList.value = res.result;
};
// 是否数据加载完毕
const isFinish = ref(false);
// 页面加载
onLoad(async () => {
await Promise.all([getBannerData(), getCategoryTopData()]);
isFinish.value = true;
});
// 提取当前二级分类数据
const subCategoryList = computed(() => {
return categoryList.value[activeIndex.value]?.children || [];
});
</script>
<template>
<view class="viewport" v-if="isFinish">
<!-- 搜索框 -->
<view class="search">
<view class="input">
<text class="icon-search">女靴</text>
</view>
</view>
<!-- 分类 -->
<view class="categories">
<!-- 左侧：一级分类 -->
<scroll-view class="primary" scroll-y>
<view
v-for="(item, index) in categoryList"
:key="item.id"
class="item"
:class="{ active: index === activeIndex }"
@tap="activeIndex = index"
>
<text class="name">
{{ item.name }}
</text>
</view>
</scroll-view>
<!-- 右侧：二级分类 -->
<scroll-view class="secondary" scroll-y>
<!-- 焦点图 -->
<XtxSwiper class="banner" :list="bannerList" />
<!-- 内容区域 -->
<view class="panel" v-for="item in subCategoryList" :key="item.id">
<view class="title">
<text class="name">{{ item.name }}</text>
<navigator class="more" hover-class="none">全部</navigator>
</view>
<view class="section">
<navigator
v-for="goods in item.goods"
:key="goods.id"
class="goods"
hover-class="none"
:url="`/pages/goods/goods?id=${goods.id}`"
>
<image class="image" :src="goods.picture"></image>
<view class="name ellipsis">{{ goods.name }}</view>
<view class="price">
<text class="symbol">¥</text>
<text class="number">{{ goods.price }}</text>
</view>
</navigator>
</view>
</view>
</scroll-view>
</view>
</view>
<!-- 骨架屏 -->
<PageSkeleton v-else />
</template>
|
